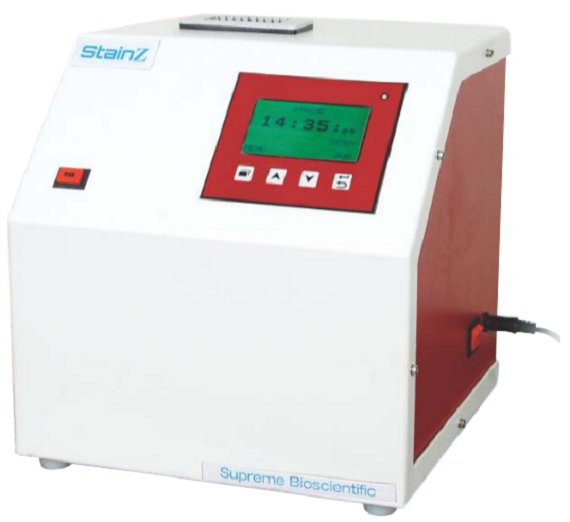

Stainz Hematology Slide Stainer
Stainz is designed for uniform and accurate staining of blood smear slide which reduces excess stress on doctor's eyes.
Features
Textbook-Quality Stain
- HD Morphology
- Proven consistency and repeatability
- Clean readable slides
- Customizable and standardized to staining preference
- Automates exceptional specimens (e.g. Bone Marrow)
Rapid Performance
With a cycle time as 3-6 minutes, the stainz stainer can process more than 100 slides per hour. No more waiting for slides to dry - they're almost ready to view when the staining cycle ends.
Easy To Use
Simply place the slides into the stainz staining chamber and run the stain cycle. The stainer takes over from there, precisely controlling all phases of the stain cycle ensuring performance without user intervention. Once the work is done you will obtain stained slides ready for examination.
Stain Methodology
Pre-set standardized aqua based modified stain
Trouble-free operation
- Robust and reliable
- State-of-the-art user interface with traceability
- Simple, prompted, maintenance
- Stained slides ready for microscope in minutes
- Laboratory technician's safety through automation
- Labor saving operation
Stainz Staining Chamber
It has a 10slide capacity & It's unique design ensures:
- No Carry Over
- Easy placing of a slide into the staining chamber
- Thorough washing of excess stain
Economical
The Stainz stainer efficiently uses staining reagents, can be easily programmed as per the user and reduces the cost of the slide staining.
Technical Specification
- Size : 26cm x 27cm x 25cm
- Weight : 5Kg
- Input : AC 100-260V-50/60 Hz
- External Power Supply : DC 12V, 60W
- Display : LCD Screen
- Cycle Time : Dependent on the protocol
- Connection : Outlet and Inlet on the rear panel
- Throughput : Up to 150 Slides per hour
- Water Supply : Tap water
- Staining : Up to 10 Slides per cycle
- Stain : Aqua based modified stain
- Specimen : Whole Blood, Bone Marrow
