Stain

• Any two stain can be connected simultaneously(Leishman, Wright, May-Grunwald, Giemsa, Jenner, Wright-Giemsa, May-Grunwald-Giemsa)
• Ready To use stain ensure less staining time & good colorization
• Special Packing in pauch ensure long stability of staining
• No need of filtration of staining

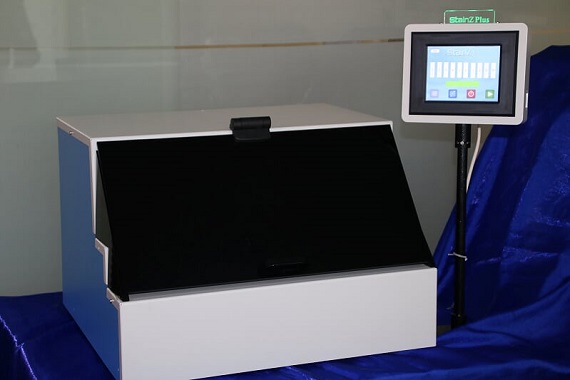

Stainz Plus Slide Holding Table

It has up to 10 slide capacity flat bed & its unique design ensure

• No carry over
• Easy placing of slide on to slide holding table
• Through washing of excess stain

Stainz Plus Dispense

3X2 dispensing needles ensure

• Total slide area coverage for reagent
• Total slide area coverage for buffer
• Absolute control on reagents dispensation, optimize consumption of reagent
• Precies control on dispensing volume ensure repeatability of colorization

Washing Method Of Slides

• Angular washing method ensure good background cleaning.
• Wash water manifold ensure no dirt and complete clening of slide
• Optimize water consumption
• Every wash cycle executed with fresh water ensure no artifact

Technical Specification

• Method : Flatbed liquid dispensing methodology
• Stain : Leishman, Wright, May-Grunwad, Giemsa, Jenner,Wright-Giemsa, May-Grunwald-Giemsa any two stain can be connected at a time.
• Throughput : Up to 200 Slides per hour
• Staining : Up to 10 Slides per cycle
• Specimen : Whole Blood, Bone Marrow, Body fluid, Malaria thick smear
• Water Supply : Tap water
• Display : 5.6" HMI LED
• Cycle Time : Dependent on the protocol
• Size : 504cm x 454cm x 335cm
• Weight : 25Kg
• Input : AC 100-260V-50/60 Hz
• External Power Supply : DC 24V, 110W
